Datix Wi-Trak Pro 3G

savv

For more than 20 years, almost all guard tour handhelds had to be sent back to the main office for downloading data. This is a trouble for both the company and the customers. Nowadays, many customers ask for real time data monitoring which means they can enjoy a higher attention level and it also represents further significant value that often proves to be essential. Through mobile connectivity all guarding companies can transmit the collected data, both from industries and civilian, to the control room. Thus, thanks to the cellular network simplicity and efficiency, guarding companies can realize supervisory control and collected data concentration.

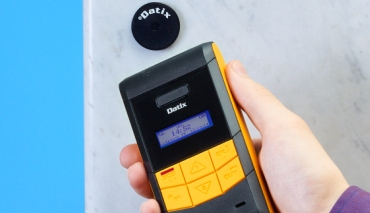

Datix Wi-Trak Pro 3G is our new ruggedized real time RFID guard tour system. Compatible with Suite, Suite WEB, RTS and our brand-new Datix2Cloud platform, the handheld reads 125Khz RFID tags and embeds a 2G/3G GSM/GPRS/UMTS/HSDPA modem and GPS receiver for outdoor tracking. With Datix Wi-Trak Pro 3G you can transmit automatically and in real time every tag scanned to the monitoring station through a fully featured 2-way data connection which also allows you to configure the devices remotely over the internet.

To ensure the safety of workers engaged in solitary activities in potentially hazardous situations the handheld comes with panic button and loss of verticality automatic detection. The emergency alarms can be dispatched in data, text (SMS) and voice mode. Alarms sent in text (SMS) mode include the latest GPS coordinates and scanned tags in order to provide indoor tracking as well.

The device is powered by a 2000mAh Li-Ion battery which can be recharged with the external docking station or on-board USB port.

Main Features

  • Reads 125 KHz RFID tags
  • Automatic and manual (clock-in/clock-out) tag scanning
  • Graphic LCD
  • On-screen incident management
  • Memory size up to 10000 scans
  • GSM/GPRS/UMTS/HSDPA modem for 2G and 3G network
  • GPS receiver
  • Privacy function
  • Fast call to 2 numbers (key 1 and key 2)
  • Additional calls to phonebook contacts
  • White list for incoming calls
  • SOS button and loss of verticality alert
  • Time base SOS alert
  • Additional alerts available (device on, device off, low battery,...)
  • Alarm transmission in data, text and voice mode
  • Alarms sent sent in text mode include last position and last tags scanned
  • On-line (data connectivity) and off-line (USB) data downloading
  • Li-Io or Li-Po rechargeable battery (2000mAh)
  • RTC backup battery

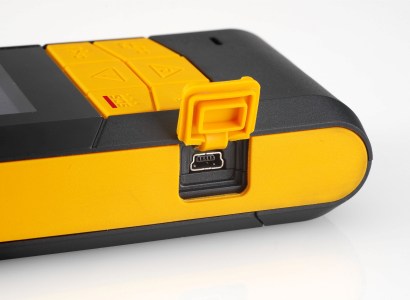

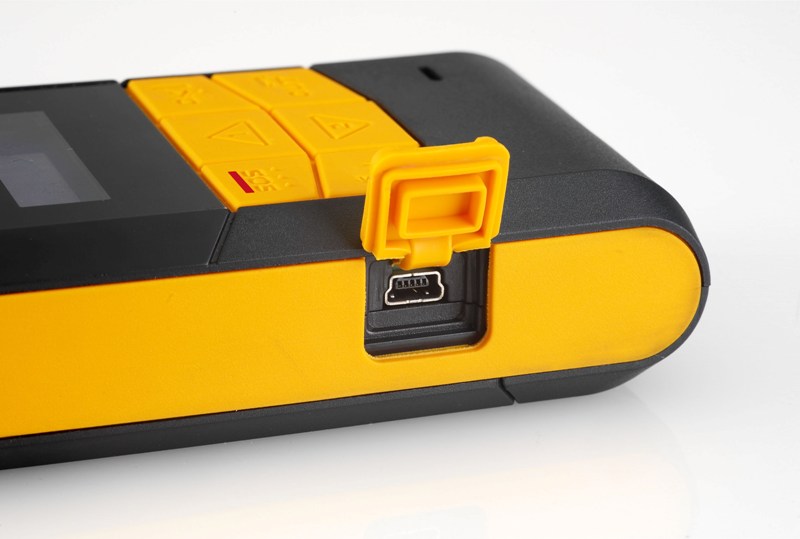

  • Battery recharge via external docking station or USB port
  • Dim.: 129x63x29 mm.
  • Weight: approx 230gr.
  • IP 55

System Management

S.A.V.V. S.r.l. develops desktop, web and cloud applications which allow the Customer to manage all Datix peripherals and switch easily from a paper-based to a computer-based management of his business.

We offer complete, high-performance and scalable solutions which range from single-seat installation to client-server distributions, even on the cloud.
